Tech tip: Scanning issues

Using an intraoral scanner can increase accuracy and reduce the number of “re-takes”, but imperfections do still happen.

While some of these issues can be cleaned up on our end, it takes some guesswork on the technician's part, and you run the risk of aligners with a less-than-ideal fit.

Here are three of the most common issues you might run into when taking intraoral scans and how to prevent them:

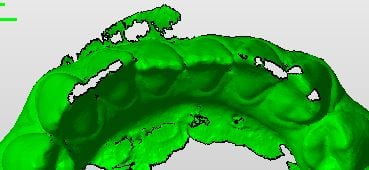

Holes in the scan

holes CEREC.jpg

holes ITERO.jpg

  • Description: Holes through the upper and lower arch scans.
  • Causes: Holes are caused when the intraoral scanner fails to capture the tooth anatomy.
  • How to avoid: To avoid creating holes when scanning, make sure to stay on the tooth long enough so that the full tooth can be captured. Check the scan to make sure no anatomy is missing before moving to the next quadrant.

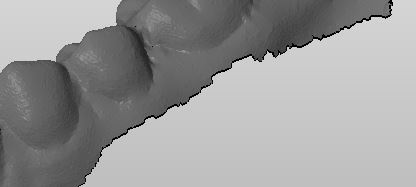

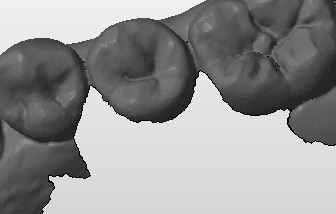

Missing gingiva

missing gingival carestream 2.jpg

missing gingival TRIOS.jpg

missing gingival CEREC.jpg

  • Description: Minimal material in the gingival region.
  • Causes: Missing gingiva is caused when the intraoral scanner fails to capture the gingival region.
  • How to avoid: To avoid missing gingival areas when scanning, make sure to rotate the intraoral scanner to the gingival to capture the full gingival region and gum line. Check the scan to make sure 3-4 mm of the gingiva is captured, before moving to the next quadrant.

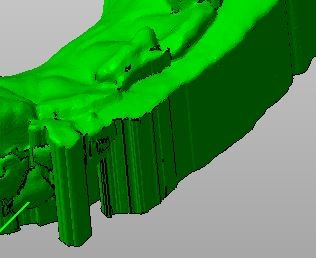

Excess material

excess material CEREC.jpg

excess material CEREC 2.jpg

  • Description: Excess material attached to the teeth.
  • Causes: Excess material is caused when not enough tooth surface is captured, so the scanner software compensates by adding excess material.
  • How to avoid: To avoid creating excess material when scanning, make sure to stay on the tooth long enough so that the full tooth/teeth can be captured. Check the scan to make sure no anatomy is missing, before moving to the next quadrant.

As a reminder, we accept PVS impressions as well as scans from most intraoral scanners.

We hope this information helps you to take better intraoral scans for the cases you submit to ClearCorrect. Check out our Help Center for more useful information on the topic of clear aligner treatment.

If you missed any of our previous tech tips, we keep them regularly posted to our blog, which you can find here.

Until next time…
